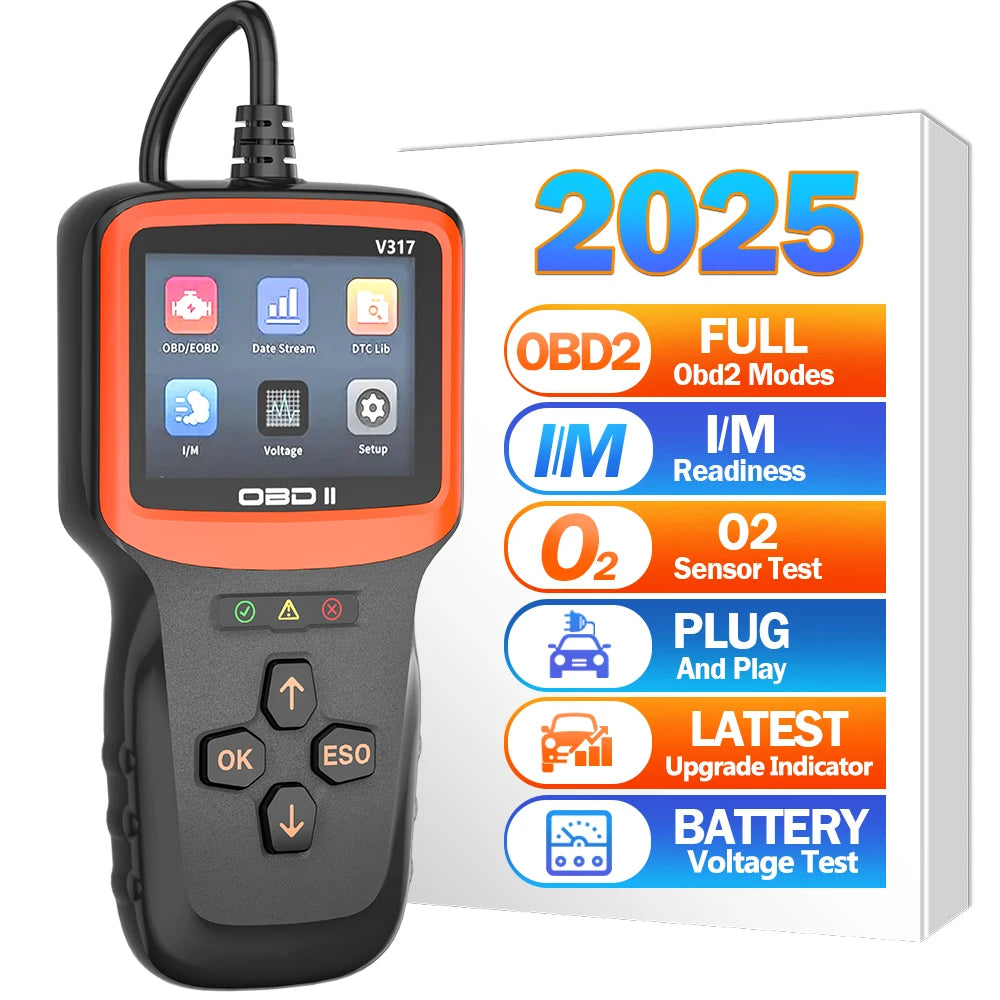

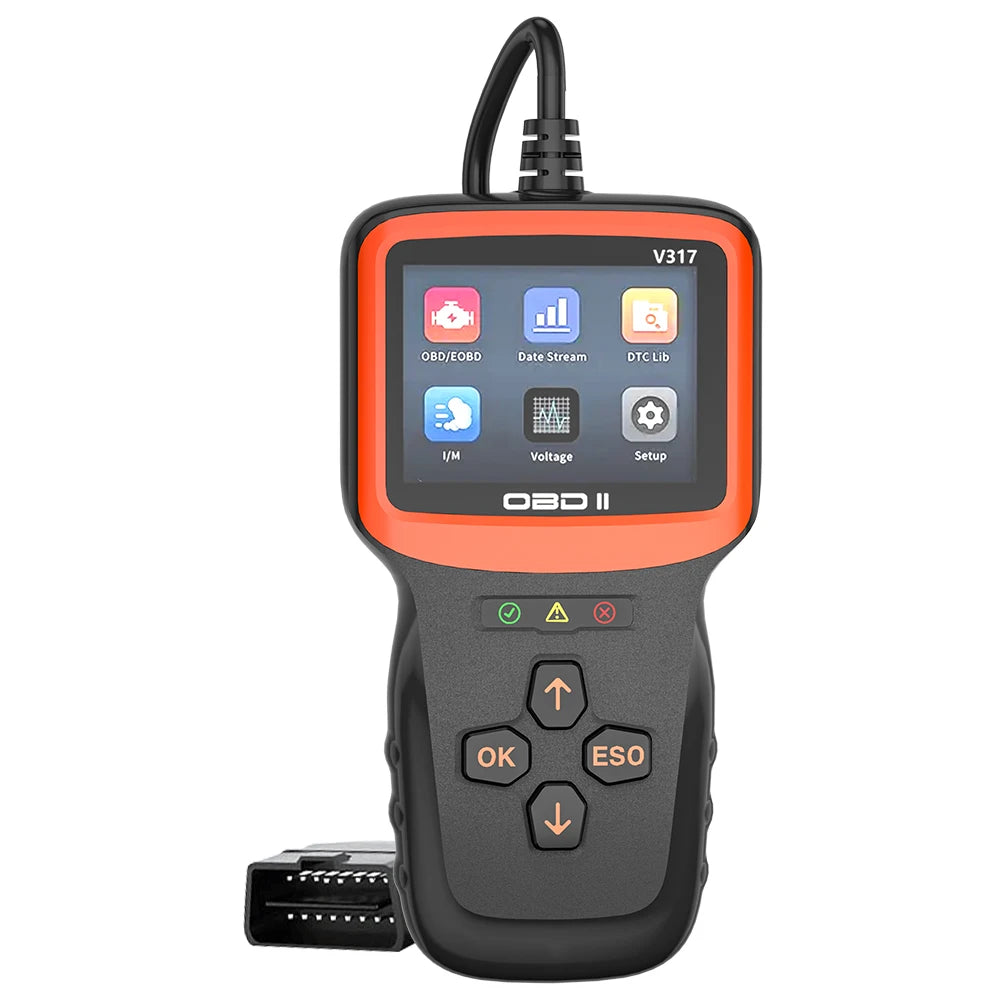

• V317 is a trolley card reader product, with the following functions:

• Support nine standard protocols of OBD II/EOBD;

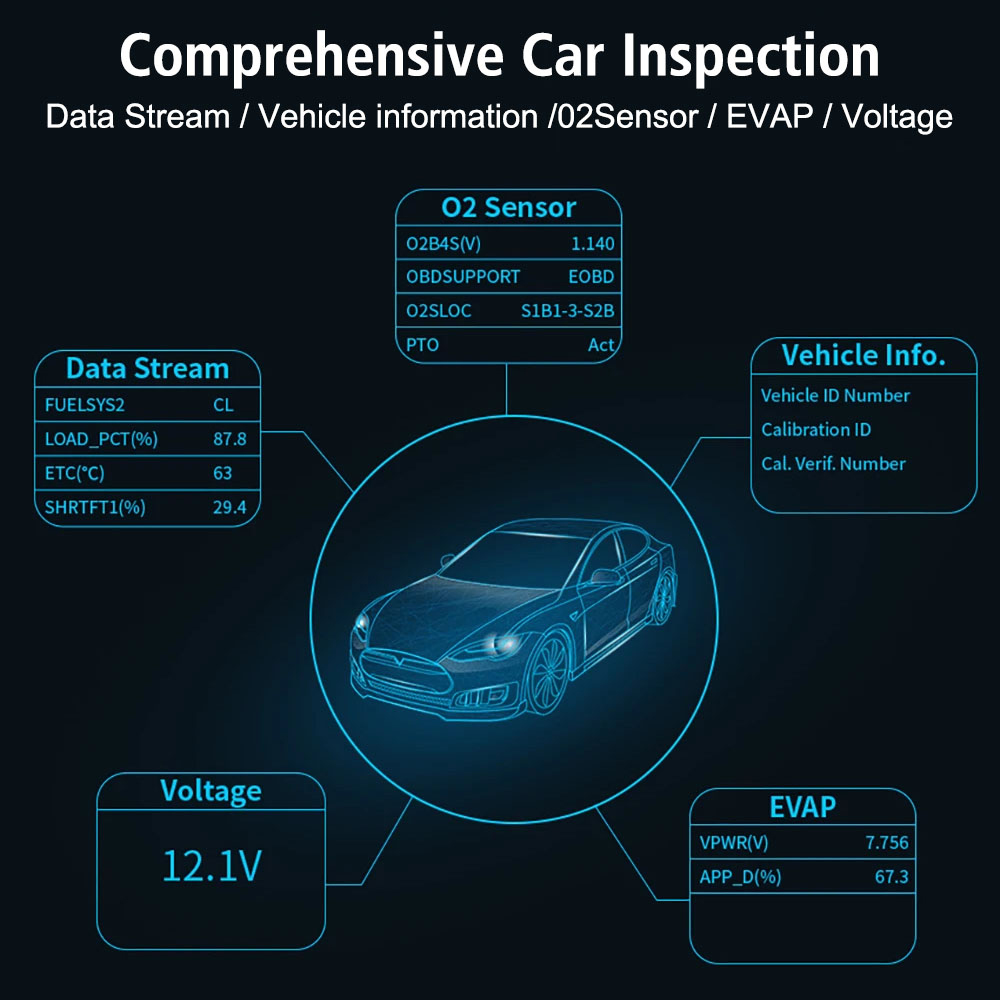

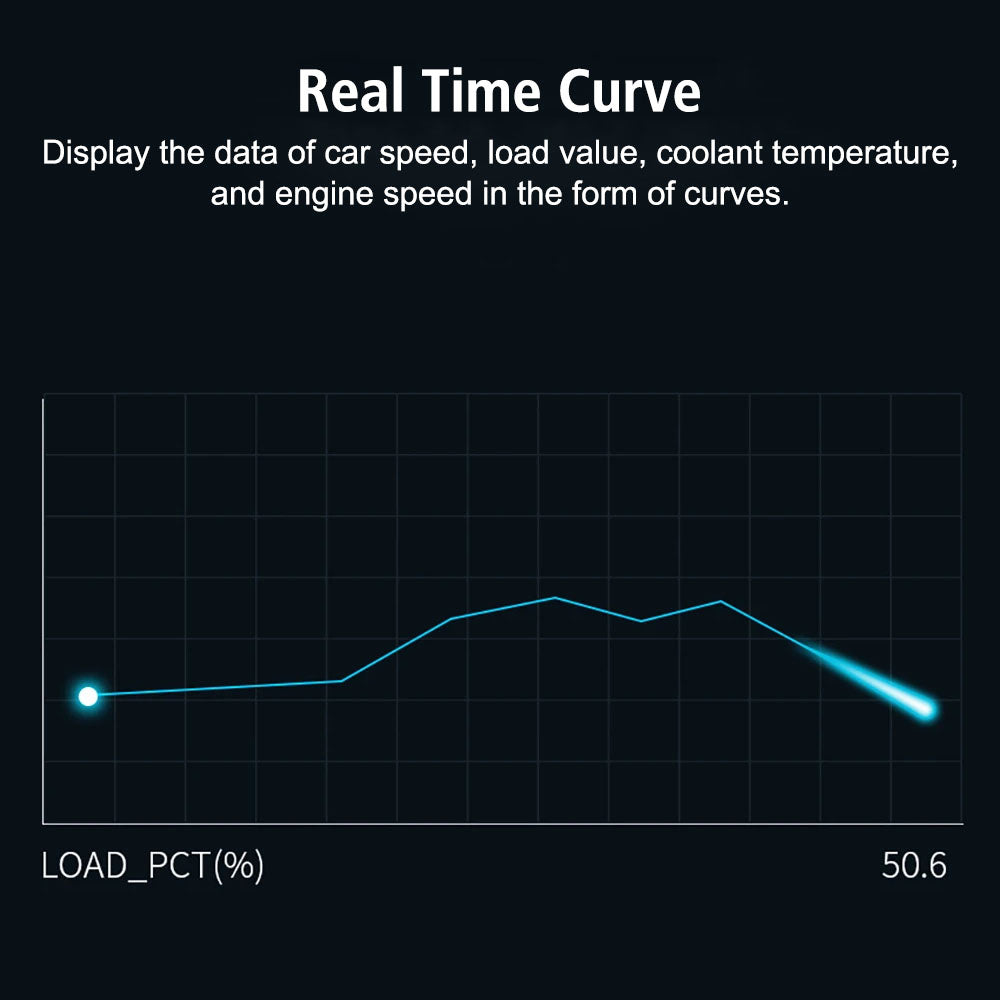

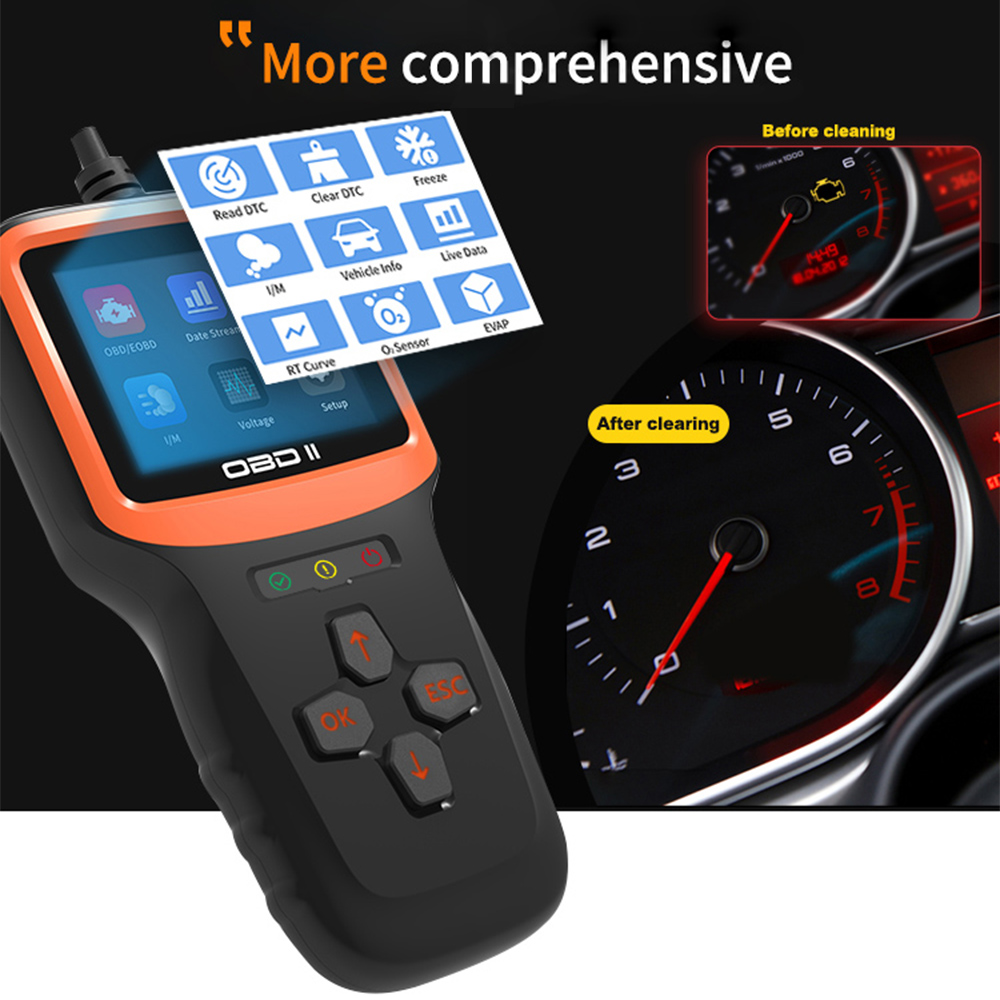

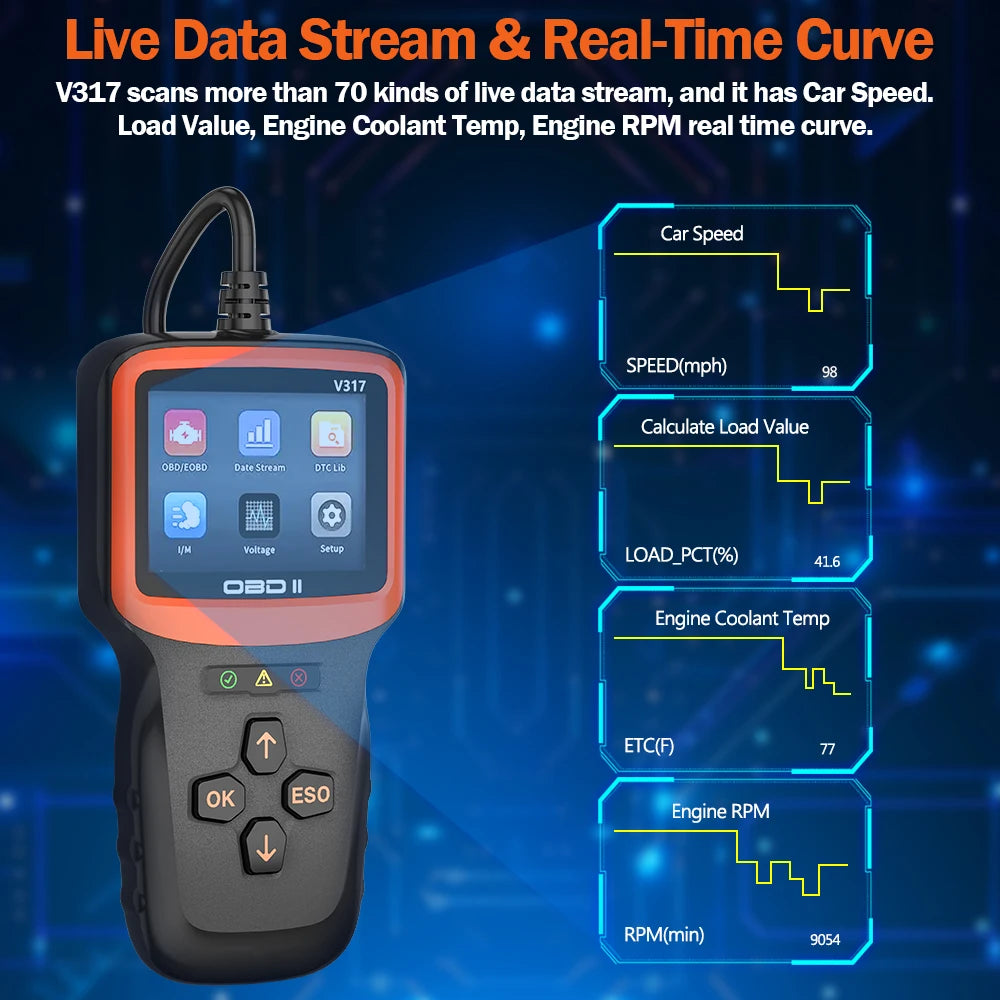

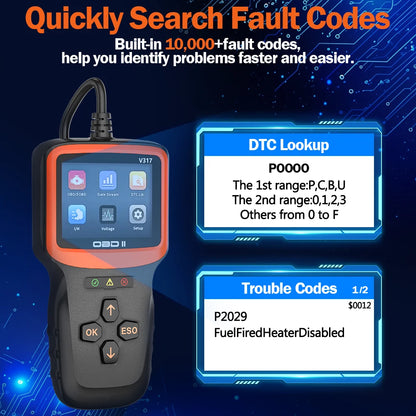

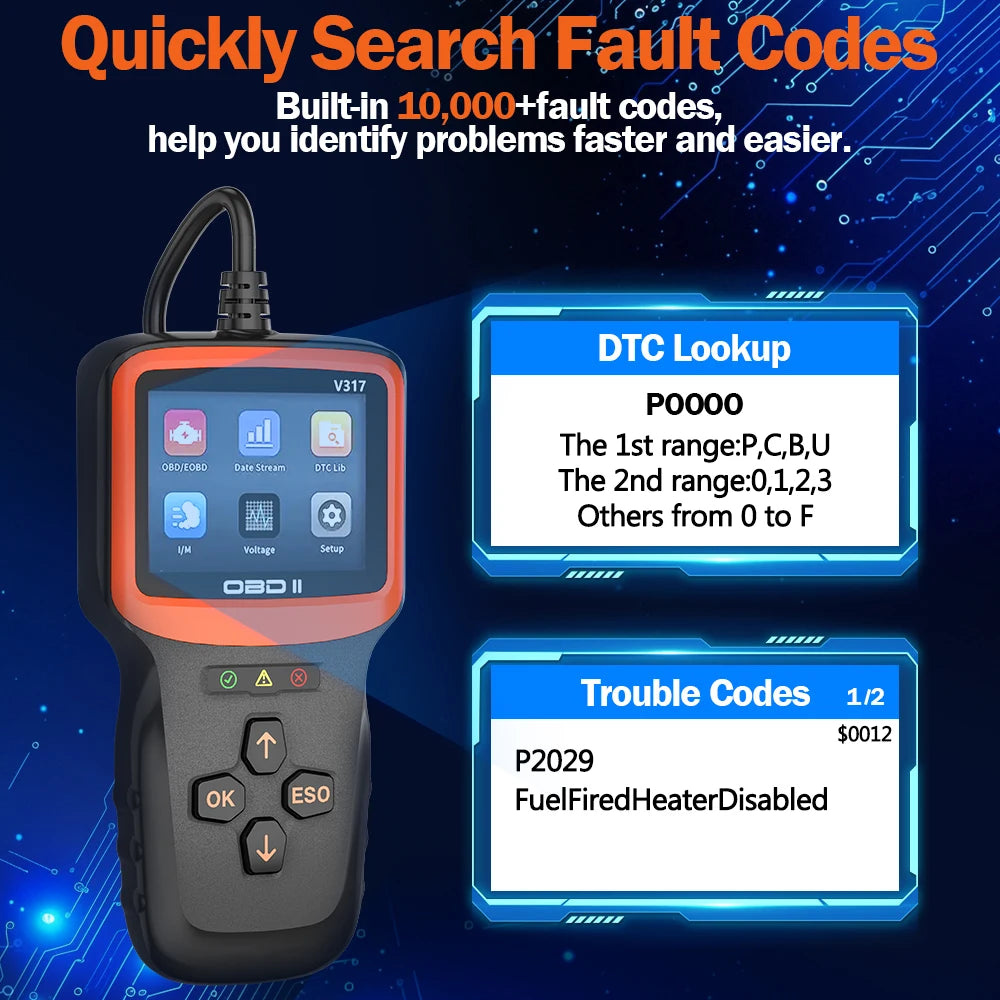

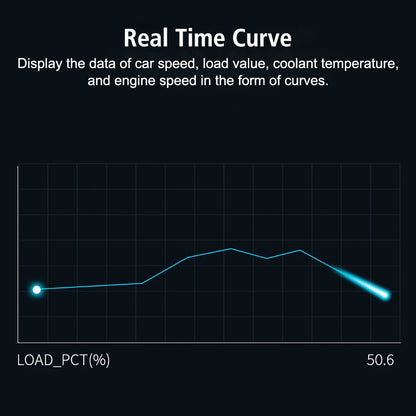

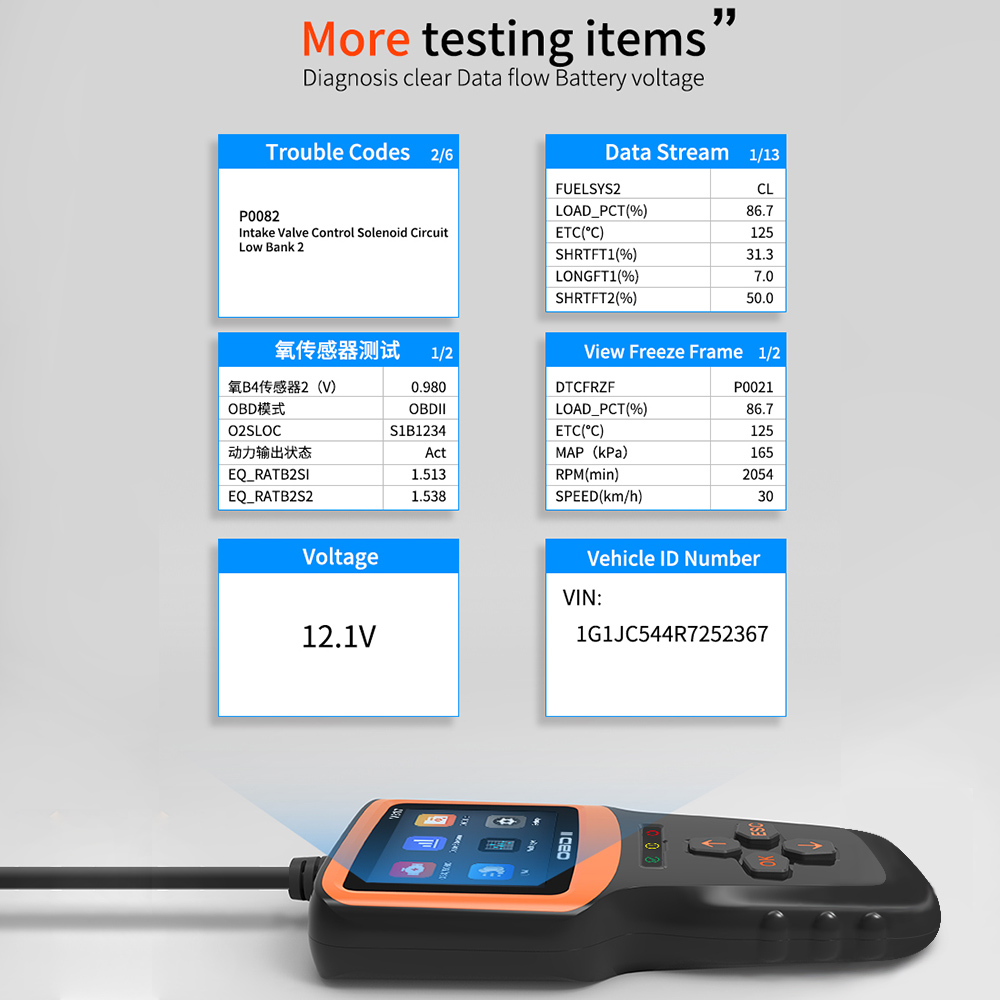

• Support 0BD functions such as vehicle fault diagnosis and real-time data streaming

• With data storage and playback functions:

• Data with emission testing

• 2.8 inch TFT color screen LCD;

• Good reliability, wide power supply voltage range of 8~36V, with stronger over-current and over-voltage protection functions;

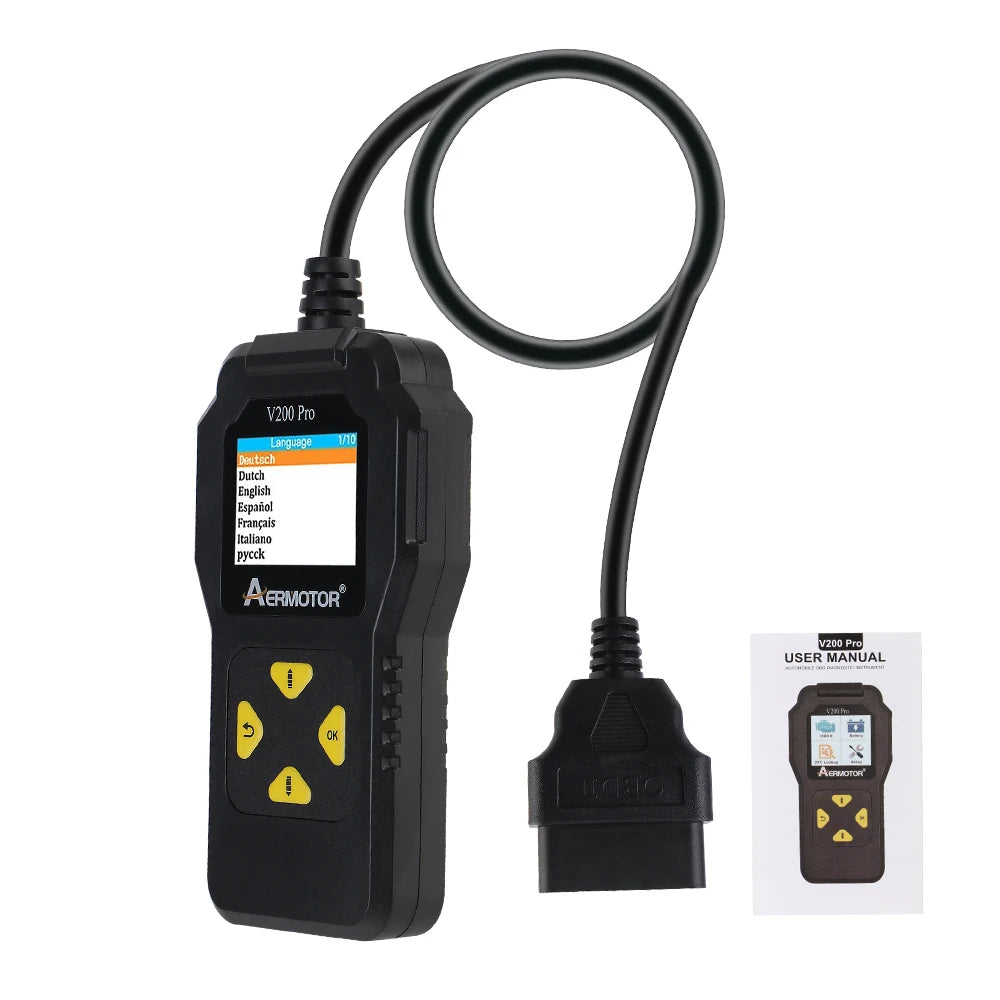

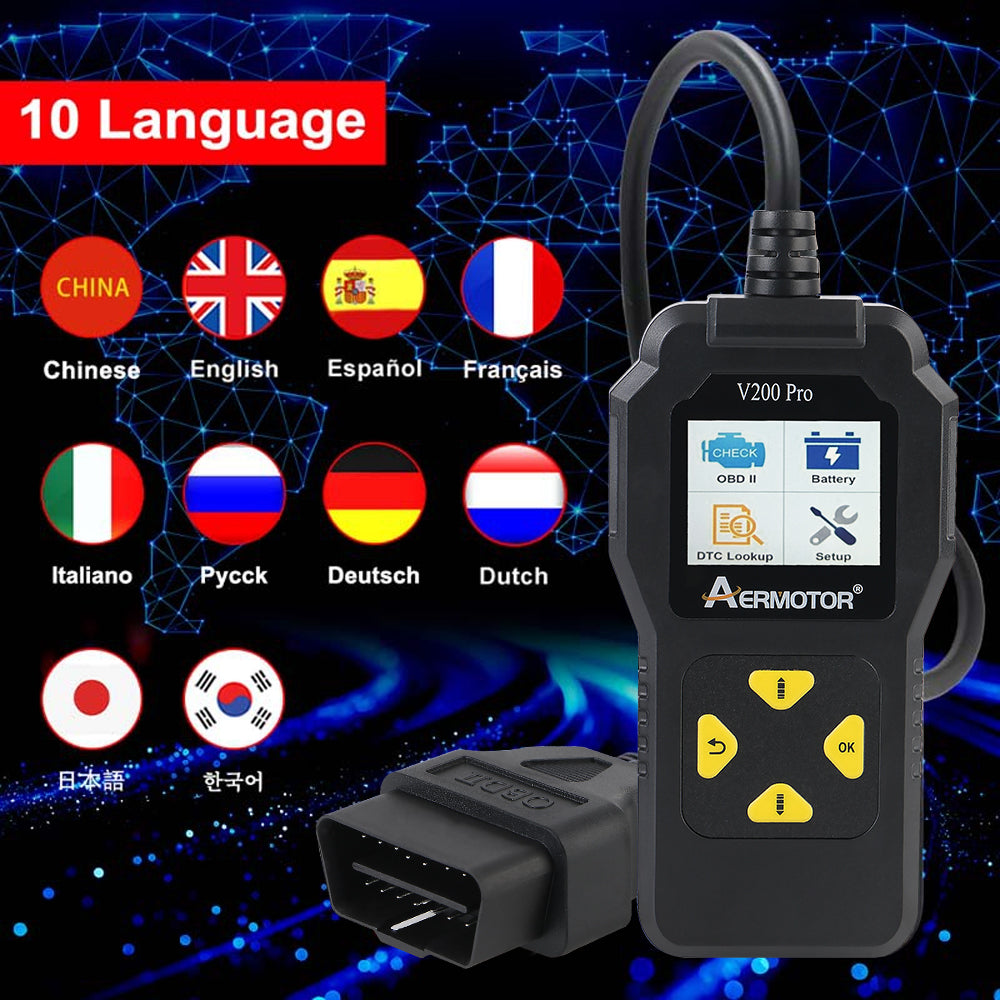

• Support languages: German, Dutch, English, Spanish, French, Italian, Russian, Chinese

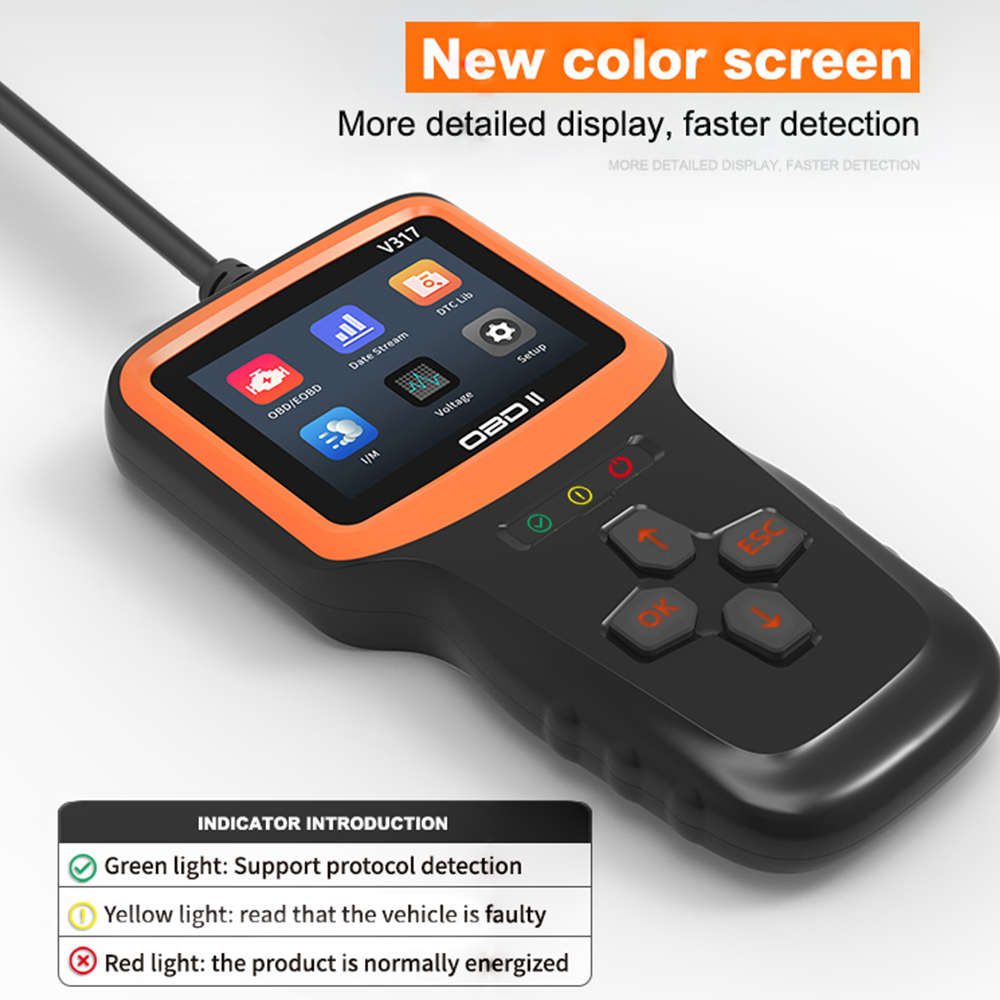

• The red light represents the power signal light: the yellow light represents the fault code signal light, and the yellow light is on when the fault code is detected: the green light represents the connection adapter signal light.

• When the product is matched with the car, the green light is on, and the green light is off, which means the model does not match.

• Applicable to models that comply with the ca's regular OBD II agreement

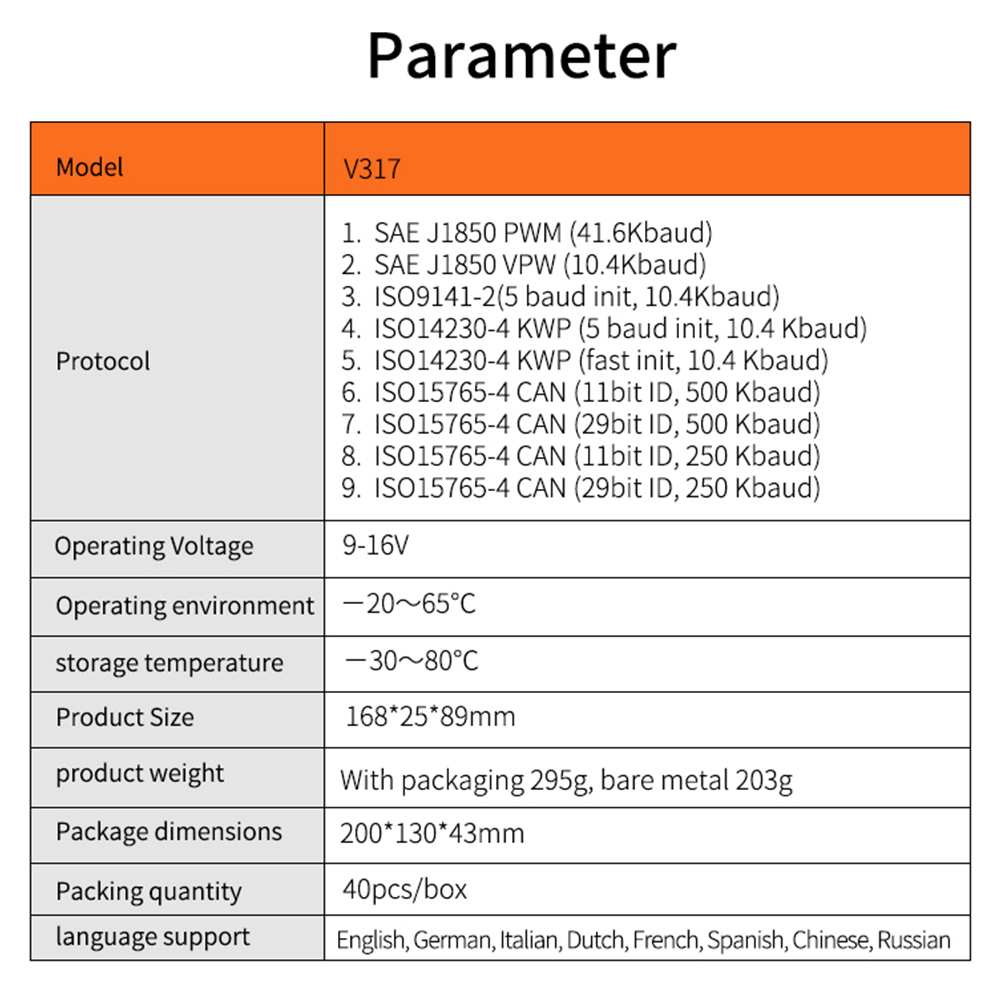

• Working voltage: 9-16V

• Model: V317

• Operating environment: -20~65°C

• Storage temperature: -30~80°C

• Size: As the pictures

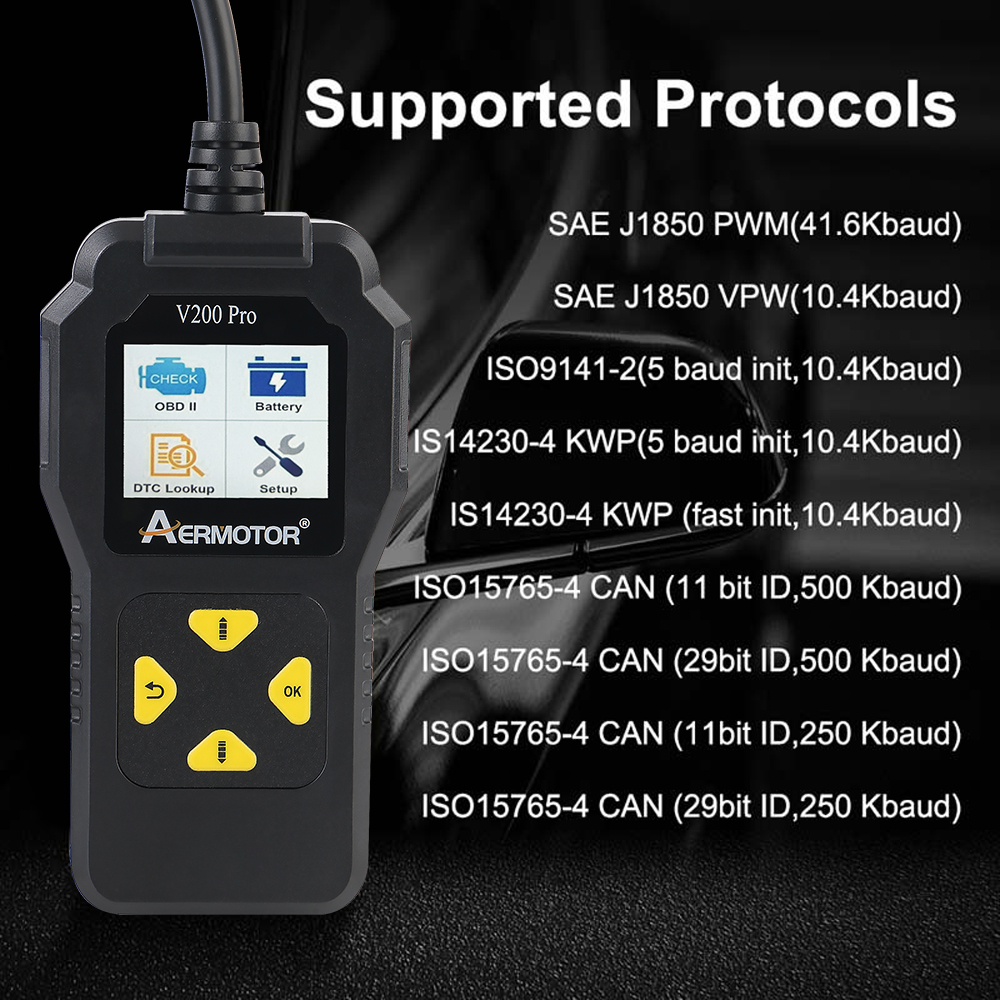

Protocol:

• SAE J1850 PWM (41.6Kbaud)

• SAE J1850VPW (10.4Kbaud)

• ISO9141-2(5 baud init, 10.4Kbaud)

• 1S014230-4 KWP (5 baud init, 10.4 Kbaud)

• IS014230-4 KWP (fast init, 10.4 Kbaud)

• 1S015765-4 CAN (11bit ID, 500 Kbaud)

• 1S015765-4 CAN (29bit ID, 500 Kbaud)

• 1S015765-4 CAN (11bit ID, 250 Kbaud)

• 1S015765-4 CAN (29bit ID, 250 Kbaud)

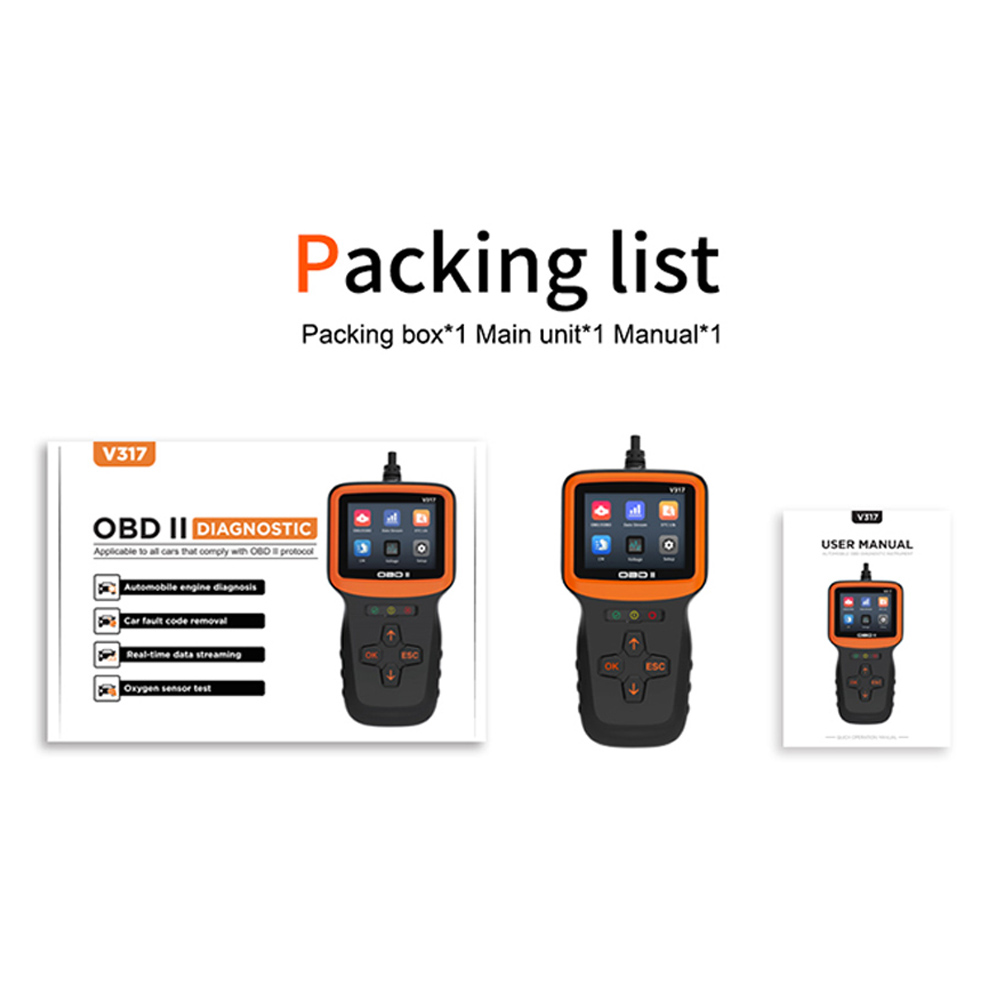

• 1 x Automobile fault detector

• 1 x English Manual
